P-Tier Compact excavators

With operating weights ranging from 1.7 to 6 metric tons, our mini diggers pack powerful might. From the 17G with its variable-width undercarriage and foldable blade for passing through tight entryways to the 60G with its standard climate-controlled cab, we have a model that is right for you. Equipped with a mechanical quick-coupler and auxiliary hydraulics, every model can pair with our mini excavator attachments for exceptional versatility and productivity in all of your earthmoving applications.

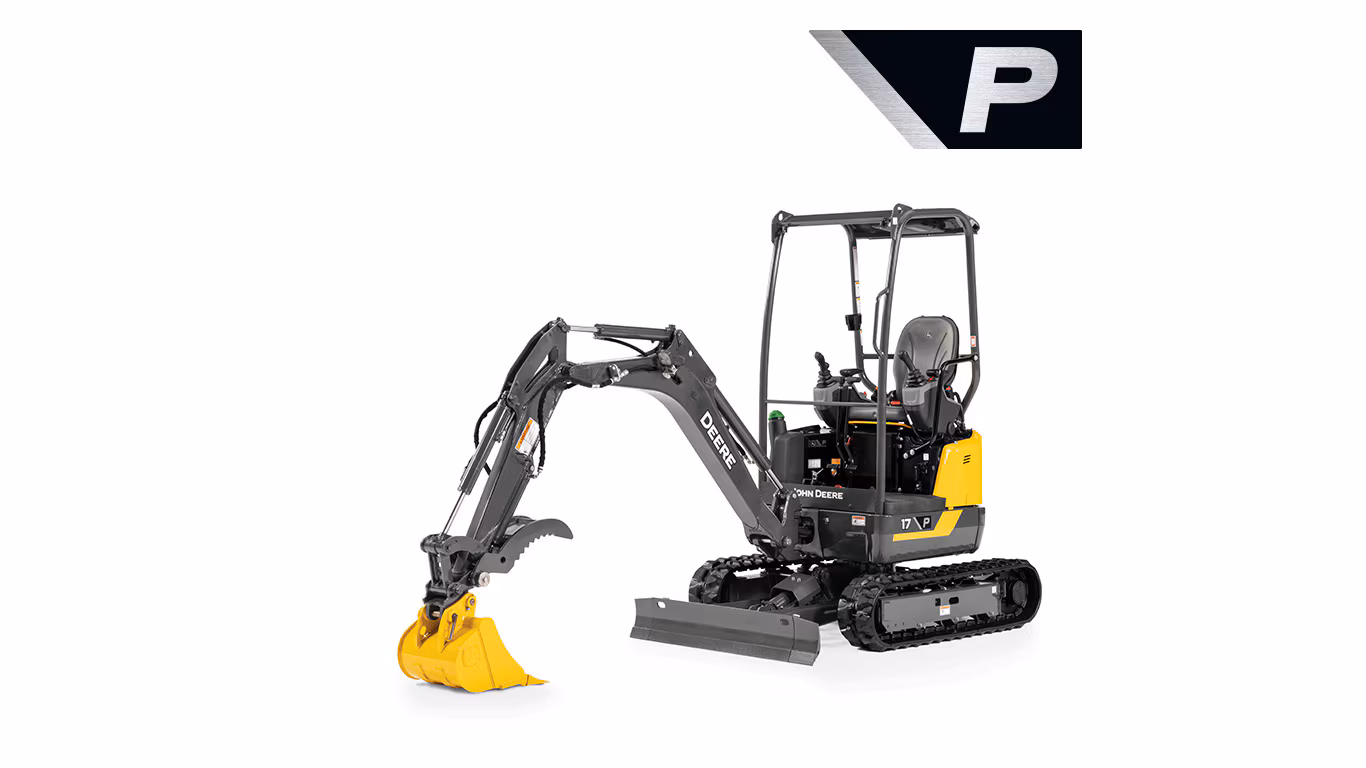

17 P-Tier Compact excavator

1.7 metric ton excavator that is perfect for narrow workspaces.

Request a quote

APPLY FOR FINANCING

VIEW BROCHURE

Contact our sales team

Lethbridge & taber

Cliff Yanke

(403) 331-1265

CALL me NOW

Medicine Hat & Burdett

Johnny Loewen

(403) 866-7832

CALL me NOW

Request quote

Features

Change attachments quickly with mechanical coupler

Think of changing attachments as a system. With the quick connect auxiliary couplers and the manual quick coupler for attachments, changeover to the next attachment is quick with minimal downtime. When using hydraulic attachments, the auxiliary selector valve lets you quickly choose between attachment one-way and two-way flows.

Benefits

John Deere™ augers can be equipped with numerous sizes of rock, heavy-duty, standard, and tree/shrub bits.
Hydraulic hammers are perfect for quarry or trench work and concrete removal. Use them to break rock, concrete flatwork, and walls; around rebar; or to a precut line.
The clamp, sometimes referred to as a thumb, can be used in conjunction with buckets. This aids in the removal of material if it is bulky and does not fit into the bucket completely.

Increase efficiency with standard backfill blade

Make a sizable impact on your productivity and profitability with the backfill blade. The backfill blade can be used to level and backfill trenches. It is the same width as the undercarriage width. The blade can add versatility by using the blade and bucket to clamp and carry pipe, rocks, or other bulky items.

Benefits

Backfill blade adds versatility, enabling these compact excavators to grade and fill.
Provides extra stability with attachments or when working on uneven terrain.
The blade can be manually retracted to navigate narrow pathways and tight quarters.

A spacious operator's station with a wide entryway and unsurpassed visibility

With large entryways and virtually unrestricted sightlines, the P-tier spacious operator stations deliver all the comfort, convenience, and visibility operators need to bring out their best. Their ergonomically designed operator stations are built to accommodate even larger operators.

Benefits

Spacious operator stations have wide entryways, making entrance and exit easier than ever
A slip resistant entry is provided for safe access to the operator’s seat
Foldable travel pedals increase foot and leg room
A suspension seat is standard from the factory
All controls are conveniently located to the operator’s right include the optional radio
Pilot control levers enable an operator to control the boom, bucket, arm, and swing functions
Control pattern selector valve is conveniently located in a compartment beneath the seat and includes a sight glass that displays the selected pattern

Ground level daily service with extended maintenance intervals

Extended maintenance intervals enable the machine to remain working for longer periods of productive work before the need to service. This greatly increases uptime and productivity of the unit. Hinged door provides wide-open access to the side-by-side oil cooler, radiator, as well as battery. Cooler design resists trash buildup and allows easier core cleanout. Access is quick and convenient.

Benefits

Extended oil change and greasing intervals contribute to low daily operating costs.
Oil impregnated front joint bushings allow the unit to extend grease intervals. Not only does it increase the time between greasing of the unit, this greatly reduces the chances of a problem occurring due to improper maintenance causing downtime to the operation.
The additional service door allows the operator and technician better access to components during daily service checks and routine maintenance for improved uptime.
Parts and service are available at over 1,400 John Deere™ dealers throughout North America.
Wet-disc swing brake provides long-term maintenance-free performance.
No aftertreatment devices needed reducing maintenance and expense.

Specs & Compare

Key Specs

Net Power:

10.8 kW (14.5 hp)

Max. Digging Depth:

2.19 m (7 ft. 2 in.)

Operating Weight:

1720 kg (3,790 lb.)

Bucket Breakout, kN (lbf)

16 (3597)

Dig Depth - Mono Boom, mm (ft/in)

2190 (7 ft 2 in)

Dump Height - Mono Boom, mm (ft/in)

2510 (8 ft 3 in)

Accessories and Attachments

17 P-Tier Compact excavator

1.7 metric ton excavator that is perfect for narrow workspaces.

Request a quote

APPLY FOR FINANCING

VIEW BROCHURE

Contact our sales team

Lethbridge & taber

Cliff Yanke

(403) 331-1265

CALL me NOW

Medicine Hat & Burdett

Johnny Loewen

(403) 866-7832

CALL me NOW

Features

Change attachments quickly with mechanical coupler

Benefits

John Deere™ augers can be equipped with numerous sizes of rock, heavy-duty, standard, and tree/shrub bits.
Hydraulic hammers are perfect for quarry or trench work and concrete removal. Use them to break rock, concrete flatwork, and walls; around rebar; or to a precut line.
The clamp, sometimes referred to as a thumb, can be used in conjunction with buckets. This aids in the removal of material if it is bulky and does not fit into the bucket completely.

Increase efficiency with standard backfill blade

Benefits

Backfill blade adds versatility, enabling these compact excavators to grade and fill.
Provides extra stability with attachments or when working on uneven terrain.
The blade can be manually retracted to navigate narrow pathways and tight quarters.

A spacious operator's station with a wide entryway and unsurpassed visibility

Benefits

Spacious operator stations have wide entryways, making entrance and exit easier than ever
A slip resistant entry is provided for safe access to the operator’s seat
Foldable travel pedals increase foot and leg room
A suspension seat is standard from the factory
All controls are conveniently located to the operator’s right include the optional radio
Pilot control levers enable an operator to control the boom, bucket, arm, and swing functions
Control pattern selector valve is conveniently located in a compartment beneath the seat and includes a sight glass that displays the selected pattern

Ground level daily service with extended maintenance intervals

Benefits

Extended oil change and greasing intervals contribute to low daily operating costs.
Oil impregnated front joint bushings allow the unit to extend grease intervals. Not only does it increase the time between greasing of the unit, this greatly reduces the chances of a problem occurring due to improper maintenance causing downtime to the operation.
The additional service door allows the operator and technician better access to components during daily service checks and routine maintenance for improved uptime.
Parts and service are available at over 1,400 John Deere™ dealers throughout North America.
Wet-disc swing brake provides long-term maintenance-free performance.
No aftertreatment devices needed reducing maintenance and expense.

Specs & Compare

Key Specs

Net Power:

10.8 kW (14.5 hp)

Max. Digging Depth:

2.19 m (7 ft. 2 in.)

Operating Weight:

1720 kg (3,790 lb.)

Bucket Breakout, kN (lbf)

16 (3597)

Dig Depth - Mono Boom, mm (ft/in)

2190 (7 ft 2 in)

Dump Height - Mono Boom, mm (ft/in)

2510 (8 ft 3 in)

Accessories and Attachments
