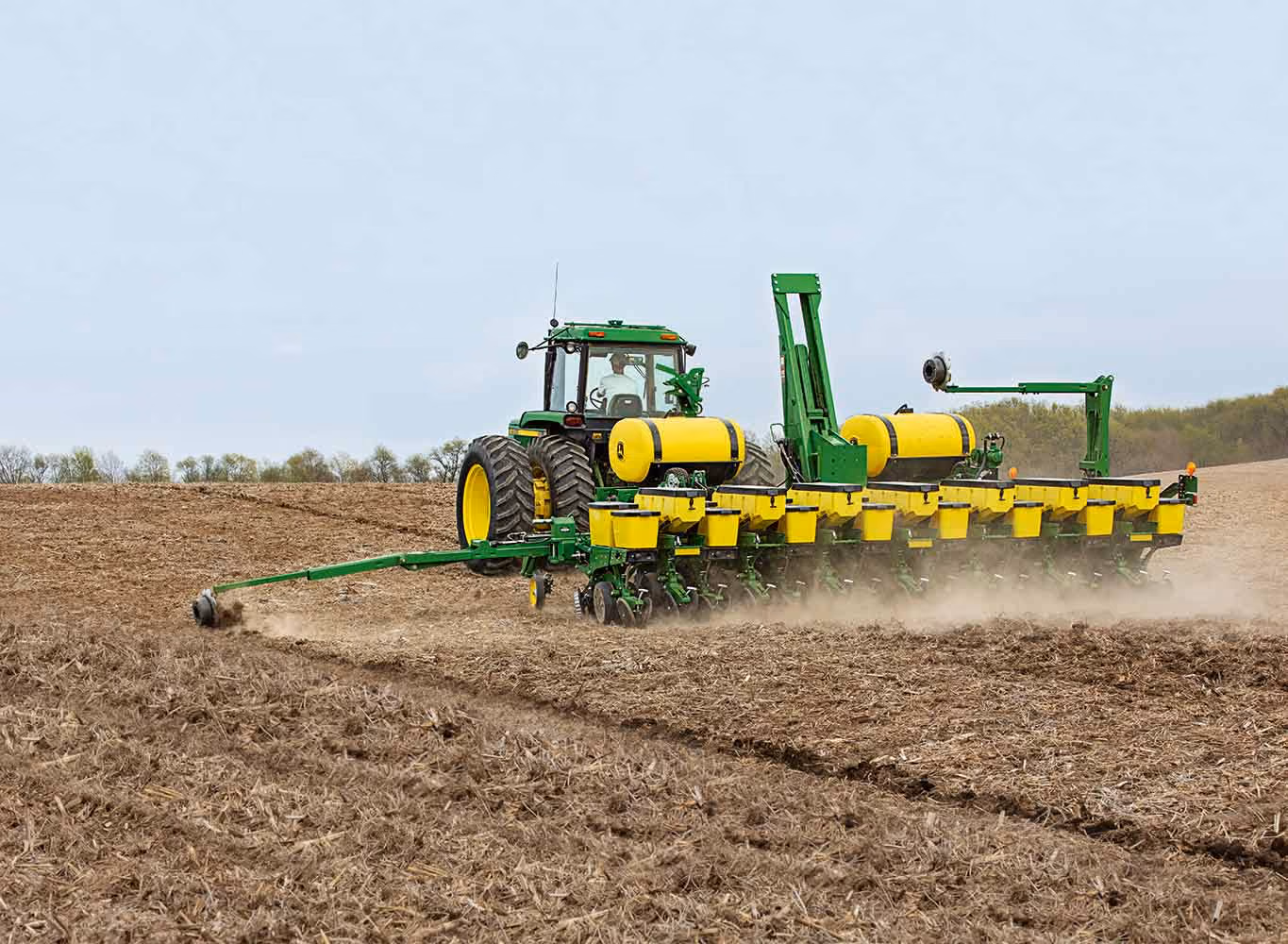

Navigate narrow roads, bridges, and field entrances with the narrow transport position of the 1745 Planter.

• Planter follows the standard duals on a tractor
• Typical transport width of 3.71 m (12 ft, 2 in.)*
• Typical transport height of 3.84 m (12 ft, 7 in.)*
• Main hydraulic cylinder mast can be lowered under 3.68 m (12 ft) for storage
• Row-units fold toward the center of the road for stability

• Comparable non-folding 1785 Planter has a typical transport width of 6.96 m (22 ft, 10 in.).

*NOTE: Transport dimensions may vary based on options. Product features are based on published information at the time of publication and are subject to change without notice.

‍

Minimize non-productive planting time by folding the planter from the cab of the tractor.

• Complete the unfold and fold cycles in less than one minute.
• By utilizing a frame control box, the base planter requires one selective control valve (SCV). Folding, raise/lower, and markers can all be tied to one hydraulic circuit.

If you are looking to split-apply your fertilizer, the 1745 Planter offers liquid or dry fertilizer options on all non-bulk fill models, including split-row configurations.

• Liquid fertilizer with single-disk, frame-mounted offset openers or in-furrow placement is available with a storage capacity of 1,136 L (300 gal).
• Dry fertilizer with single-disk, frame-mounted offset openers is available with a storage capacity of 1,200 L (42.4 cu ft).
• Fertilizer application is on the front rank only, with 76.2-cm (30-in.) spacing.
• The fertilizer system is driven by a tire contact drive.

‍

The 1745 Planter comes in two main row-unit configurations with the option of keeping it simple or adding more advanced features

• 8-row, 76.2-cm (30-in.) configuration
• 15-row, 38.1-cm (15-in.) configuration allows for planting corn in 76.2-cm (30-in.) rows and soybeans in 38.1-cm (15-in.) rows
• Select between mechanical or vacuum meters.
• Dry or liquid fertilizer is available on all non-Central Commodity System (CCS™) models.
• Select more advanced options like the Pro-Shaft™ cable drive system, RowCommand™ row clutches, CCS, and the SeedStar™ XP monitoring system.

‍
