At 16-km/h (10-mph) working speeds, the 2230FH can cover up to 34 ha (84 acres) per hour, enabling producers to size their implement for their unique productivity and agronomic needs.

The 2230FH is available in sizes ranging from 7.8 to 21.2 m (25.5 ft to 69.5 ft). Horsepower requirements range from 19.6-29.4 kW/m (8 to 12 hp-ft), depending on the soil, depth, and speed.

THREE-SECTION CONFIGURATIONS

FIVE-SECTION CONFIGURATIONS

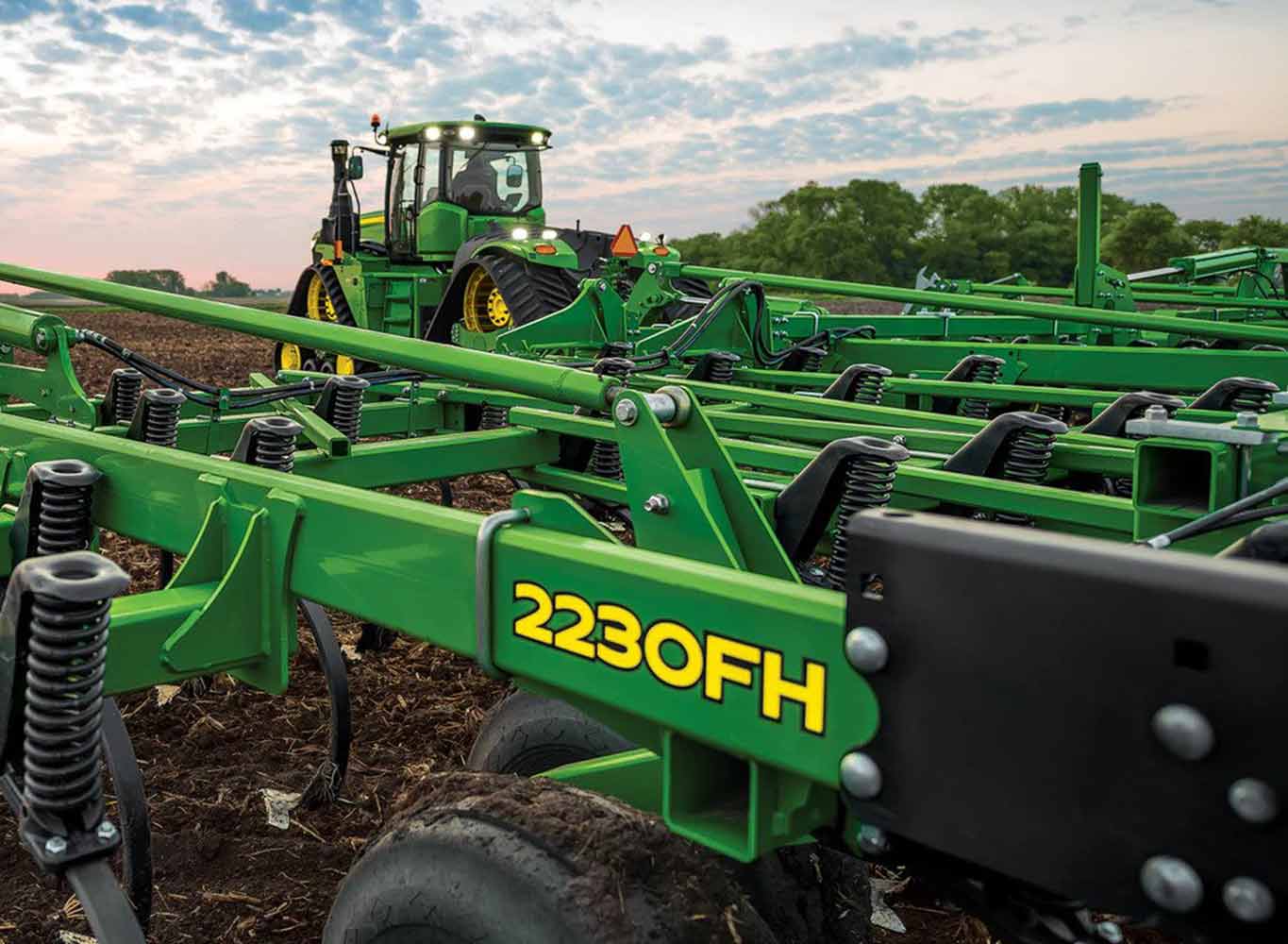

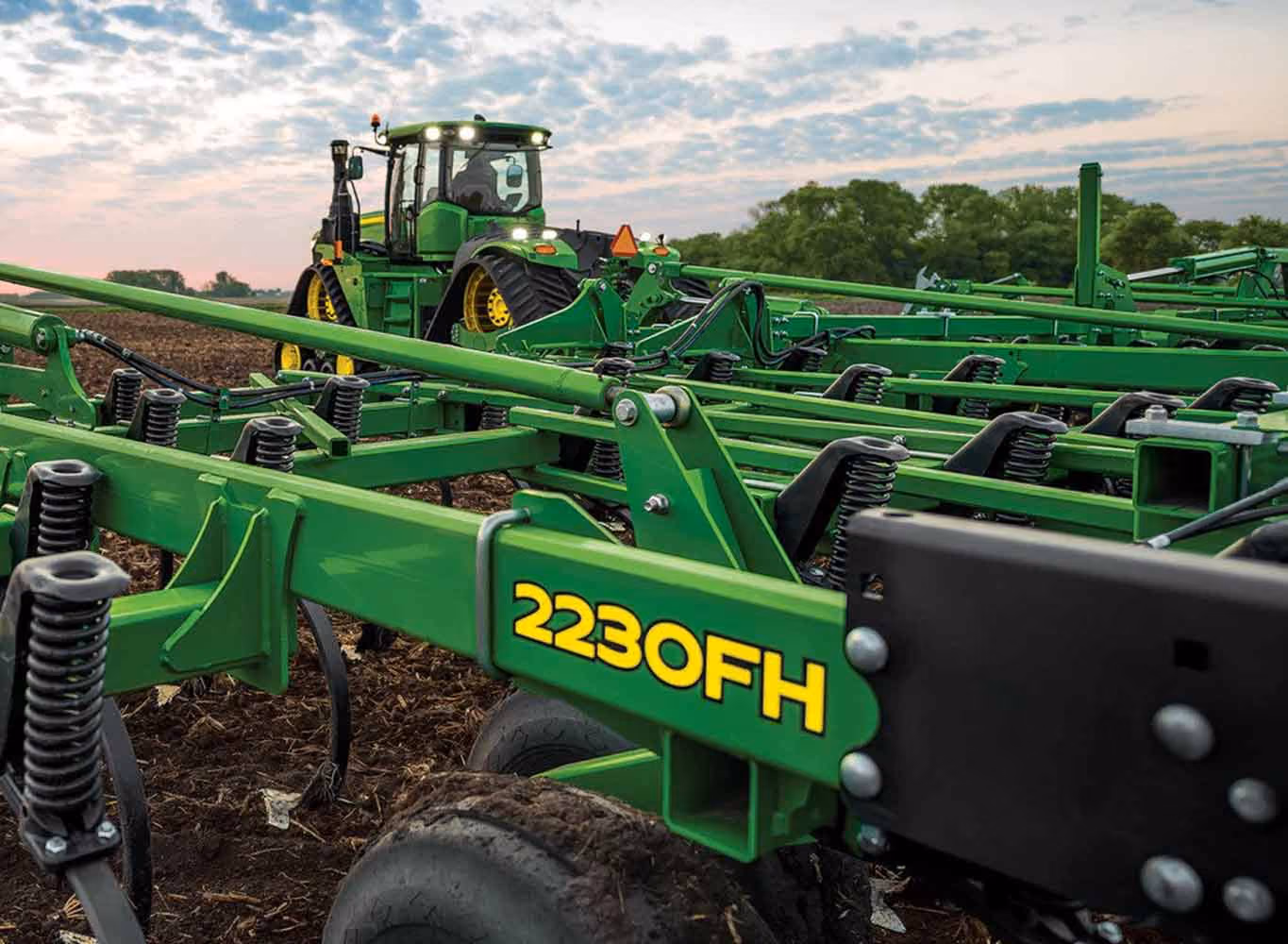

The 2230FH Floating Hitch Field Cultivator offers superior ground-hugging capability with precise depth and pressure control across all types of terrain. The floating hitch frame design enables this field cultivator to work independently of the tractor and follow the contour of the ground so the implement remains level. The 2230FH commands consistent depth from front to back and from side to side.

Thanks to an updated frame design that enables true 152-mm (6-in.) split-the-middle shank spacing, the 2230 Field Cultivators can maintain consistent depth and evenly cover the field to achieve an optimal seedbed and manage weeds.

SEEDBED PREPARATION

Even at high speeds and in tough field conditions, the TruPosition C-shanks with 91 kg (200 lb) of trip force minimize side-to-side movement and provide the operator better control of the soil profile for improved leveling capabilities.

These shanks provide a full tillage cut across the entire width of the implement. The shanks stay firmly planted in tough soils without quickly relieving. As a result, the soil is mixed completely and streaks are reduced. This helps producers maximize their productivity and create flat seedbeds for smooth planter operation and consistent seed depth.

WEED MANAGEMENT

The even 152-mm (6-in.) split-the-middle shank spacing enables the 2230 Field Cultivator to minimize the potential of remaining strips of weeds that survive the tillage pass. With a field cultivator pass just prior to planting/seeding, the crop can emerge into a weed-free field that gives it the best chance to reach canopy ahead of the weeds.

If some weeds emerge and a post-emergence herbicide is needed, weeds should be smaller and easier to control. As a result, the field cultivator pass helps keep weed management costs under control and helps preserve crop yield potential.

SPACING OPTIONS

152-mm (6-in.) shank spacing base equipment on the 2230LL and 2230FH. Additional options for implement customization include:

• 229-mm (9-in.) shank spacing
• 114-mm (4.5-in.) s-tine spacing (on select configurations)

‍

Depending on agronomic needs, producers have a choice of six rear harrow options included in the ProFinish Leveling System on the 2230 Field Cultivators.
