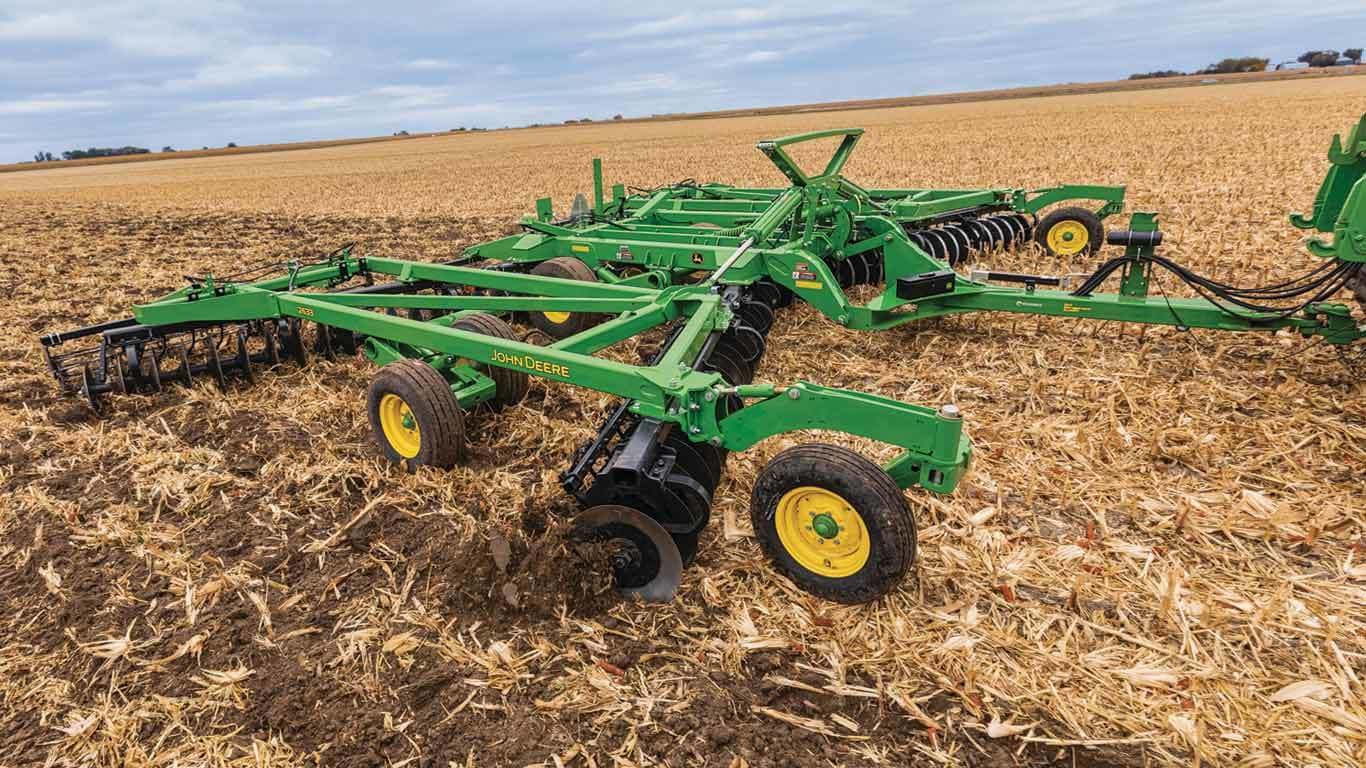

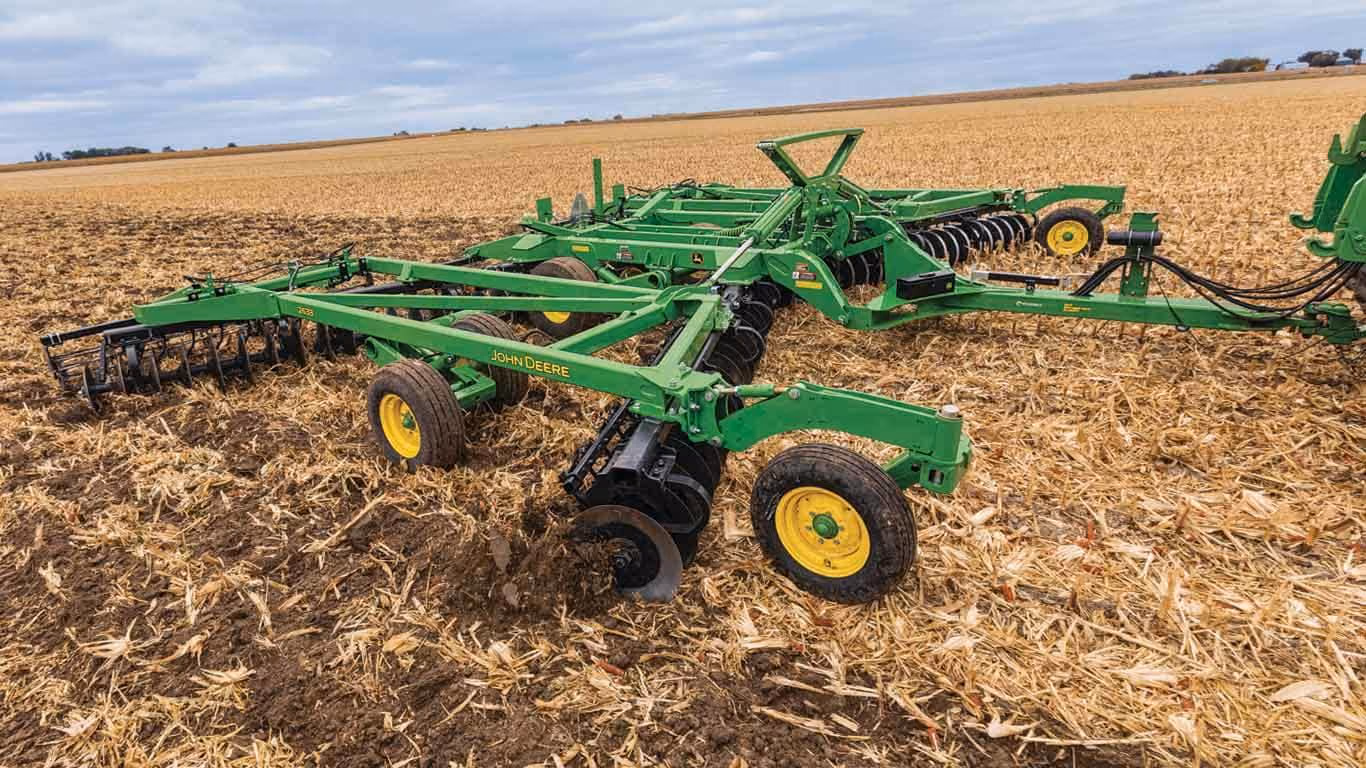

The John Deere 2630 Series offer three disk models that provide a wide range of variety for all tillage applications.

John Deere's 2630 Series Disks offer different blade options for soil penetration and residue sizing.

DISK BLADE OPTIONS

• Disk blades compatible with 2630 Disk
• Disk blades compatible with 2633 Disk
• Disk blades compatible with 2635 Disk

‍

The 2630 General-Purpose Disk comes equipped with front and rear solid-spherical disk blades with 185-mm (7.25-in.) or 230-mm (9-in.) spacing. The primary blade size is 560 mm (22 in.) x 4.5 mm (0.177 in.)

Available blade options for the 2630 are listed below.

185-mm (7.25-in.) spacing, front and rear

• Ideal for seedbed preparation and chemical incorporation
• Provides limited residue-handling capability
• Works best in light to medium soils

230-mm (9-in.) spacing, front and rear

• Good for seedbed preparation and chemical incorporation in medium to heavy soils
• Works well in primary tillage in light to medium soils
• Provides good residue-handling capability

NOTE:

• The number 1 edge has a beefier profile and is best for rocky conditions.
• The number 10 edge has a narrower profile and should work well in most non-rock conditions.
• Rear main and wing gangs are tapered with one blade 51 mm (2 in.) smaller than the primary blade.
• Integral furrow filler blades are included with all rear wing gangs which are 102 mm (4 in.) smaller than the primary blade.
• Front outer gangs have a taper that is 51 mm (2 in.) smaller than the primary blade, except for 559-mm (22-in.) disk blades.

‍

John Deere's 2630 Series Disks provide an innovative approach to tension disk gang bolts.
