The John Deere 2630 Series offer three disk models that provide a wide range of variety for all tillage applications.

John Deere's 2630 Series Disks offer different blade options for soil penetration and residue sizing.

DISK BLADE OPTIONS

• Disk blades compatible with 2630 Disk
• Disk blades compatible with 2633 Disk
• Disk blades compatible with 2635 Disk

‍

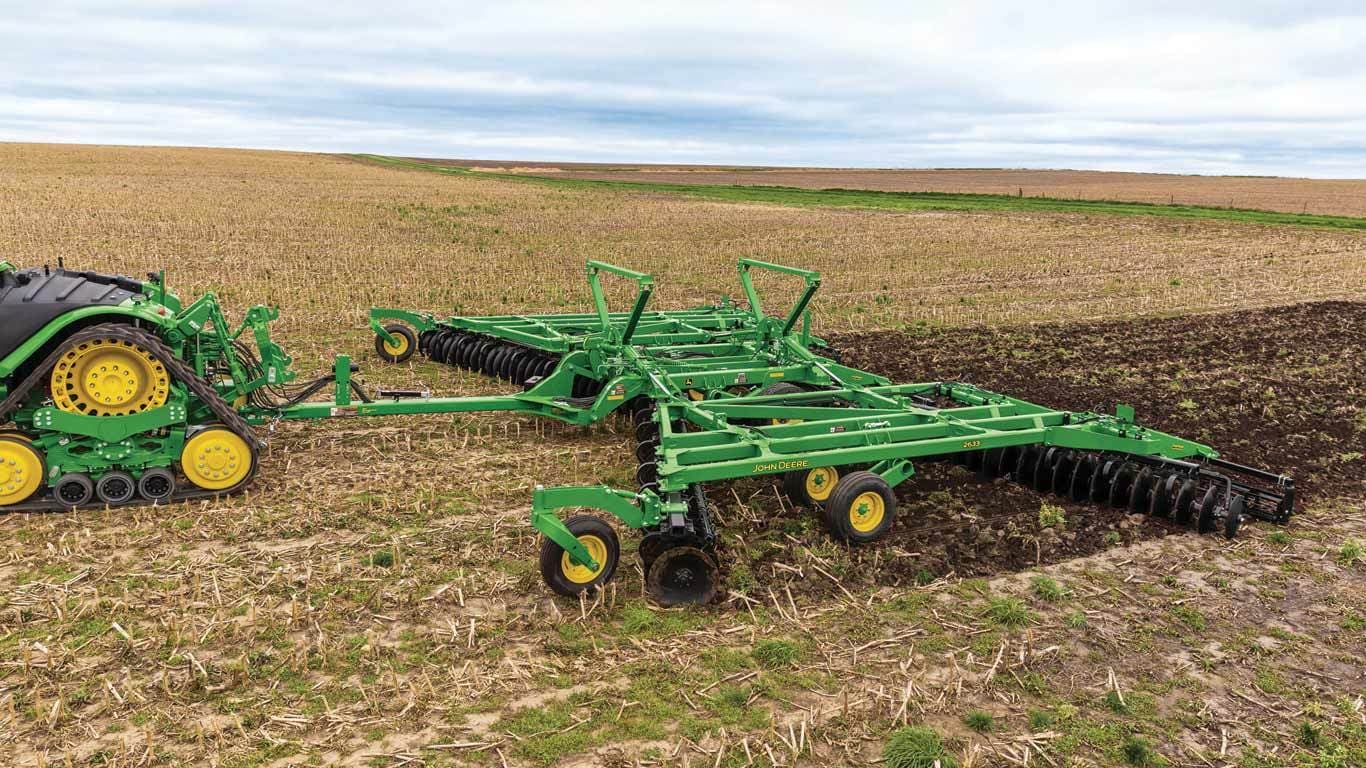

The 2633 Dual-Purpose Disk comes equipped with front solid- or cutout-spherical blades and rear solid spherical disk blades with 230-mm (9-in.) spacing. The base blade size is 610 mm x 5 mm (24 in. x 0.197 in.).

Available blade options for the 2633 are listed below.

230-mm (9-in.) spacing, front and rear

• Good for seedbed preparation and chemical incorporation in medium to heavy soils
• Works well in primary tillage in light to medium soils
• Provides good residue-handling capability

NOTE:

• The number 1 edge has a beefier profile and is best for rocky conditions.
• The number 10 edge has a narrower profile and should work well in most non-rock conditions.
• Rear main and wing gangs are tapered with one blade 51 mm (2 in.) smaller than the primary blade.
• Integral furrow filler blades are included with all rear wing gangs which are 102 mm (4 in.) smaller than the primary blade.
• Front outer gangs have a taper that is 51 mm (2 in.) smaller than the primary blade, except for 560-mm (22-in.) disk blades.
• The John Deere 2633 offers producers a rollable blade option. Rollable disk blades support the edge-rolling practices that are commonly used. These blades can be rolled to restore the edge sharpness for producers needing a better penetrating blade.
• The special boron-composite material can endure the edge-rolling techniques without jeopardizing blade edge durability and longevity. John Deere does not recommend rolling disk blades that do not have this rollable designation.

John Deere's 2630 Series Disks provide an innovative approach to tension disk gang bolts.
