The John Deere 2630 Series offer three disk models that provide a wide range of variety for all tillage applications.

John Deere's 2630 Series Disks offer different blade options for soil penetration and residue sizing.

DISK BLADE OPTIONS

• Disk blades compatible with 2630 Disk
• Disk blades compatible with 2633 Disk
• Disk blades compatible with 2635 Disk

‍

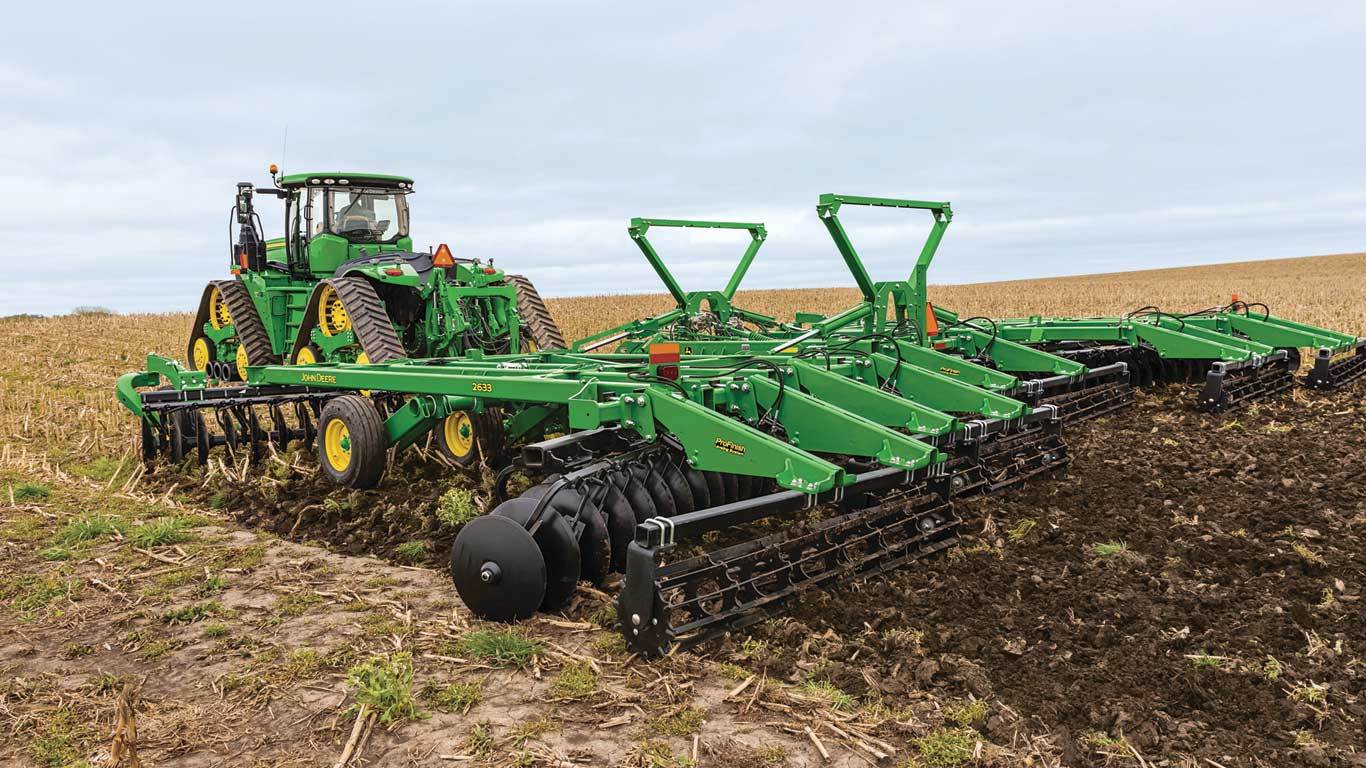

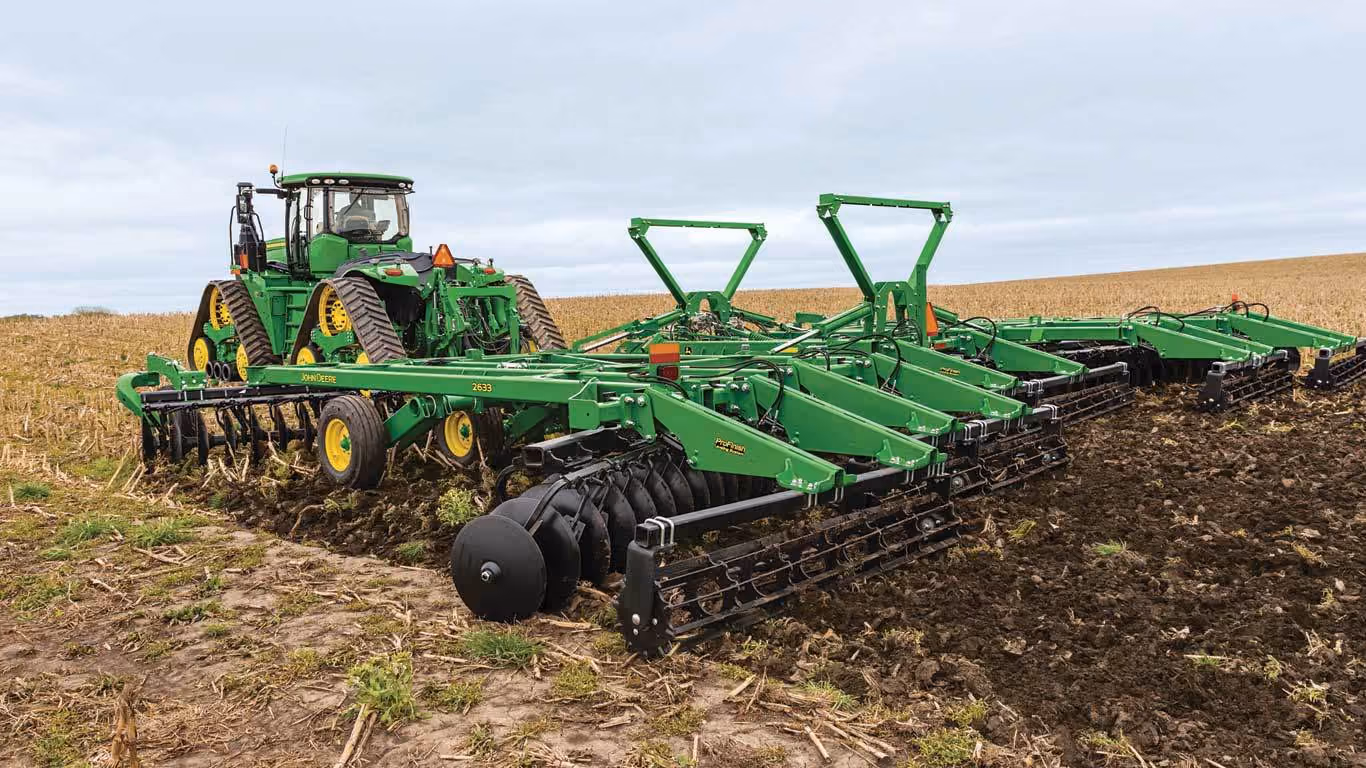

The 2635 General-Purpose Disk comes equipped with front and rear solid-spherical disk blades with 280-mm (11-in.) spacing. The primary blade size is 610 mm (24 in.) x 6.5 mm (0.256 in.).

Additional blade options for the 2635 are listed below.

280-mm (11-in.) spacing, front and rear

• Excels in high residue conditions where residue flow may cause plugging on narrower spacing
• Allows for more weight to be transferred per blade which increases penetration in heavy soils

230-mm (9-in.) front spacing/280-mm (11-in.) rear spacing

• Works well in primary tillage in all soil types
• Provides excellent residue sizing capability with 230-mm (9-in.) spacing on the front gang
• Allows for increased residue handling capabilities with 280-mm (11-in.) rear gang spacing

NOTE:

• The number 1 edge has a beefier profile and is best for rocky conditions.
• The number 10 edge has a narrower profile and should work well in most non-rock conditions.
• Rear main and wing gangs are tapered with one blade 51 mm (2 in.) smaller than the primary blade.
• Integral furrow filler blades are included with all rear wing gangs which are 102 mm (4 in.) smaller than the primary blade.
• Front outer gangs have a taper that is 51 mm (2 in.) smaller than the primary blade, except for 560-mm (22-in.) disk blades.

John Deere's 2630 Series Disks provide an innovative approach to tension disk gang bolts.
