Zero Series Round Balers
John Deere Balers are made with one purpose: strengthening overall performance of customer production. Strength starts from within. When it works its way out, it’s your operation that ends up stronger.

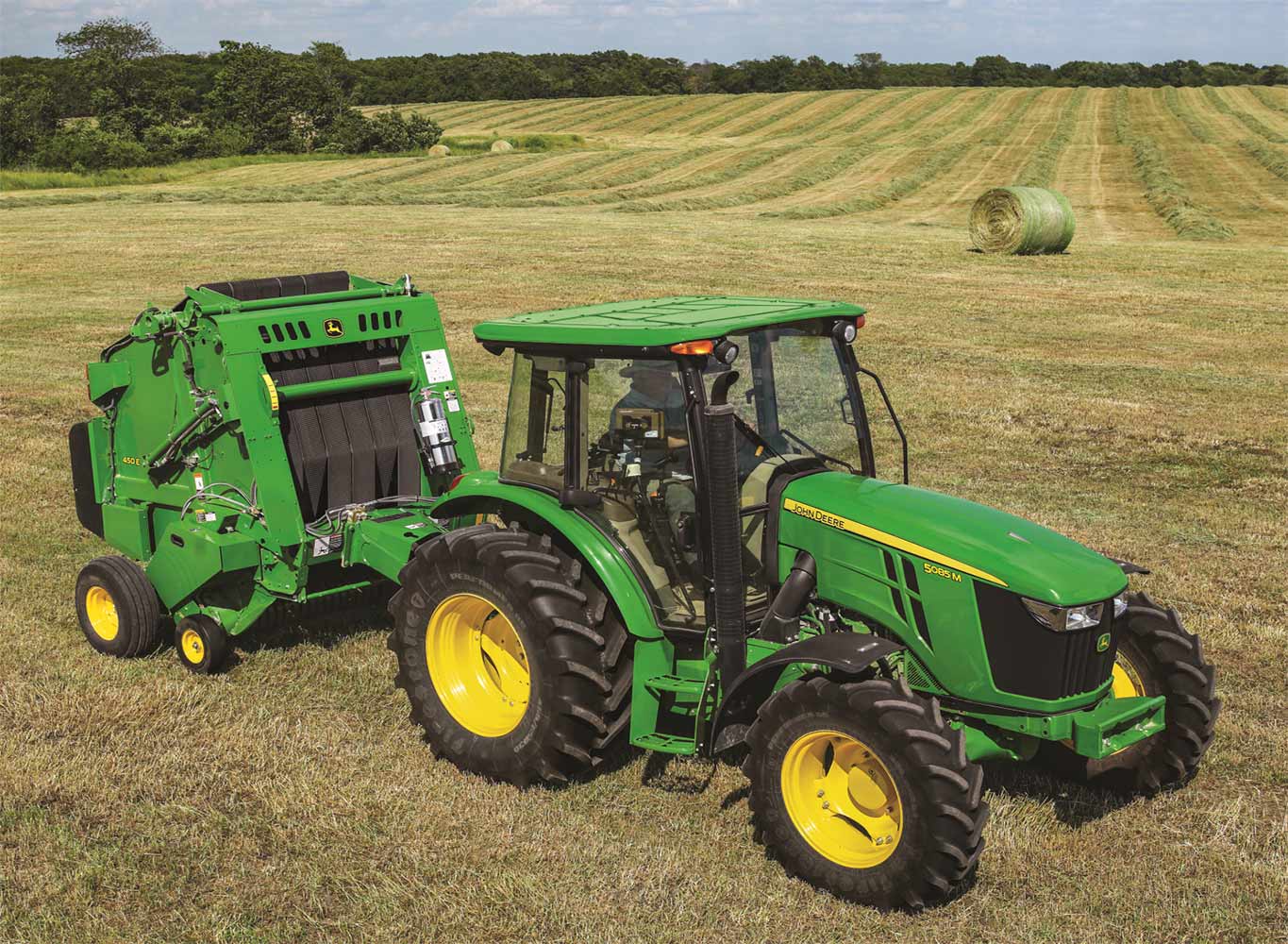

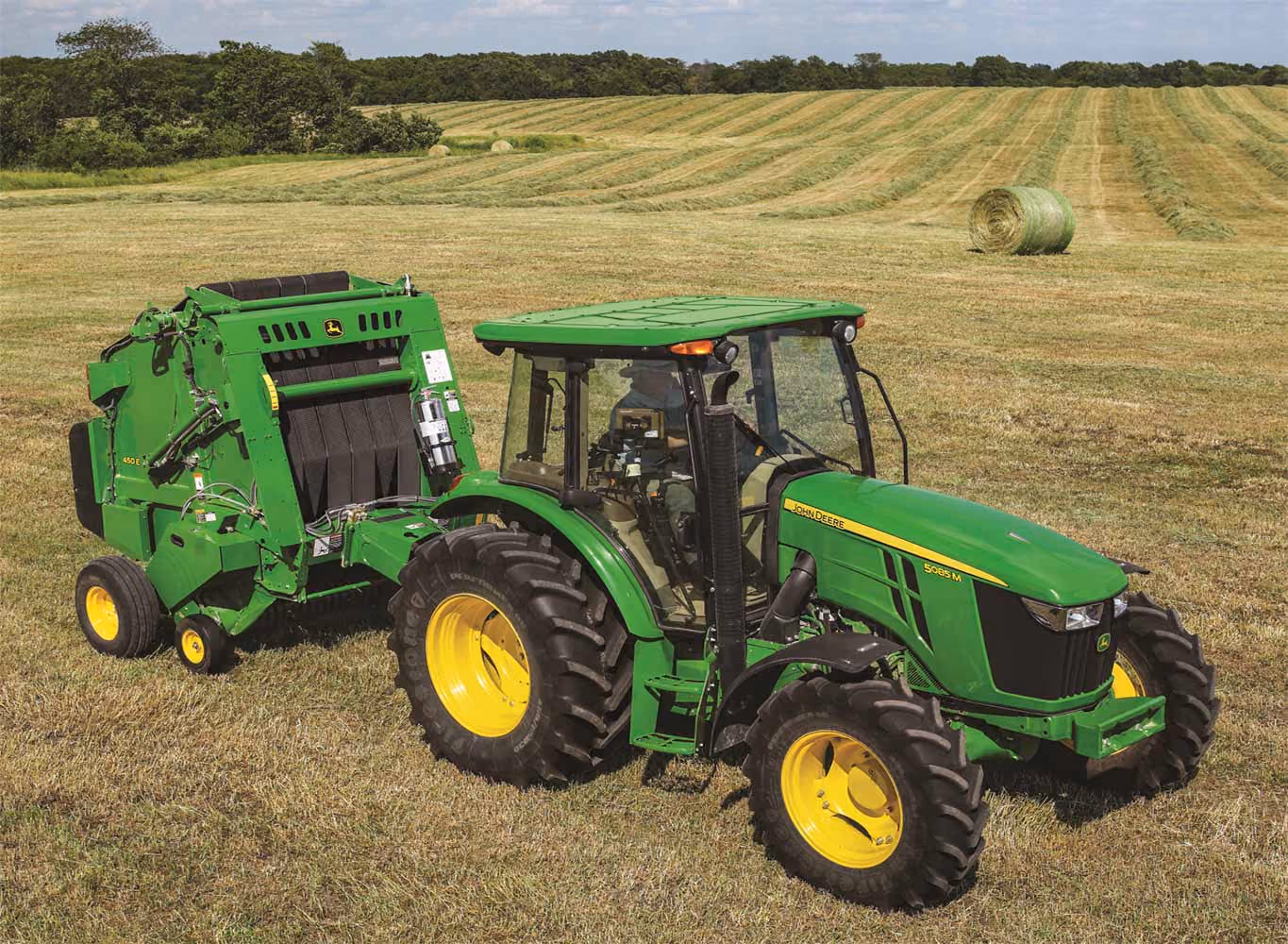

450E Round Baler
Contact our sales team
Lethbridge & taber

Medicine Hat & Burdett
Features
Regular pickup offers large feed opening and low-profile, mid-mounted pickup
Mounted in front of the baler wheels and directly below the bale chamber, the pickup hugs the ground for clean crop retrieval. Hay movement is minimized.
- V-belt driven
- 450E and 450M Baler pickups are 116.6 cm (45.9 in.) wide
- Large reel shaft and reel bearing
The small-diameter, low-profile pickup allows for good ground gauging and clean crop retrieval.
- Handles large, heavy windrows of hay and high-moisture crops
- Feeds hay directly to the forming chamber to reduce crop loss
- Low-profile pickup minimizes hay lift to reduce chaffing and retain hay quality
Side flares prevent hay from blowing off the pickup ends, which reduces hay loss.
The closely-spaced pickup teeth extend to the baler side sheets to help build straight-edged bales.
Standard on regular pickups, compressor rods are contoured to control hay over the pickup radius for positive feeding. The compressor rack can be adjusted upward or downward to match the volume of material in the windrow and can be easily removed to match crop conditions.
The adjusting crank positions the pickup to the desired operating height to match crop or field conditions.
An optional hydraulic pickup lift cylinder is available as an attachment.
- Makes raising for transport or clearing obstructions easy
- Crank handle serves as a down stop
- Adapts to regular and MegaWide™ Plus pickups
- Hydraulic pickup lift comes standard on premium machines
NOTE: Crank is not an option for the MegaWide High Capacity and Cutting (HC2) feed system.
Automatic electric-tie option using BaleTrak™ Pro monitor allows for more productivity
The BaleTrak Pro monitor-controller is included with the automatic electric twine tie option and the Edge-to-Edge net wrap option on the 450E Baler. The monitor sounds an alarm for near-full, full, and oversized bales.
- Monitor beeps once to notify the operator to even-up the bale prior to reaching the desired size.
- Monitor beeps twice when the bale reaches the desired size.
- If the operator continues to feed hay into the baler, the monitor will sound continuously to warn of an oversized bale.
- Bale shape bars are not available on the 450E Round Balers. The 450E Round Balers allow for adjustment of twine settings from the cab by using the BaleTrak Pro Monitor.
- The number of wraps on the Edge-to-Edge net wrap option on the 450E can be set with the BaleTrak Pro.
The audible level of the monitor can be adjusted.
Adjustable hitch to match wide array of tractor drawbar heights
The 0 Series Round Balers came standard with an adjustable hitch and this feature will continue to be in base with the 0 Series Round Balers. This feature allows the hitch height to be adjusted to optimize crop-feeding performance. Due to the wide array of tractor tire sizes and drawbar heights, hitch adjustment may be necessary to get the proper feed opening of the baler. The adjustable hitch eliminates the need for the 51-mm (2-in.) thick tractor drawbar kit (AE57344) because it has a wider opening.
Benefits of the adjustable hitch:
- Ability to match baler to numerous tire sizes
- Allows for drawbar height to fall within 330 mm to 559 mm (13 in. to 22 in.) from the top of the drawbar to the ground
- Eliminates narrow feed opening on the baler which can cause plugging
- Allows pickup head to follow terrain without missing crop
All eight bolts must be used when adjusting the hitch. There are four different positions as shown below:
Vertical forming chamber maintains uniform bale density
As the hay enters the forming chamber from the pickup, belts immediately turn the hay to form a tight, dense core.
Incoming hay then feeds between the bale and the lower gate roll. Hay is tightly compressed into smooth, dense layers as it enters the bale.
Chaffing is greatly reduced to prevent loss and retain hay quality in the bale.
The idler arm rises with bale growth, forcing oil from the hydraulic cylinder through a pressure-relief valve to maintain uniform bale density throughout the bale-forming process.
