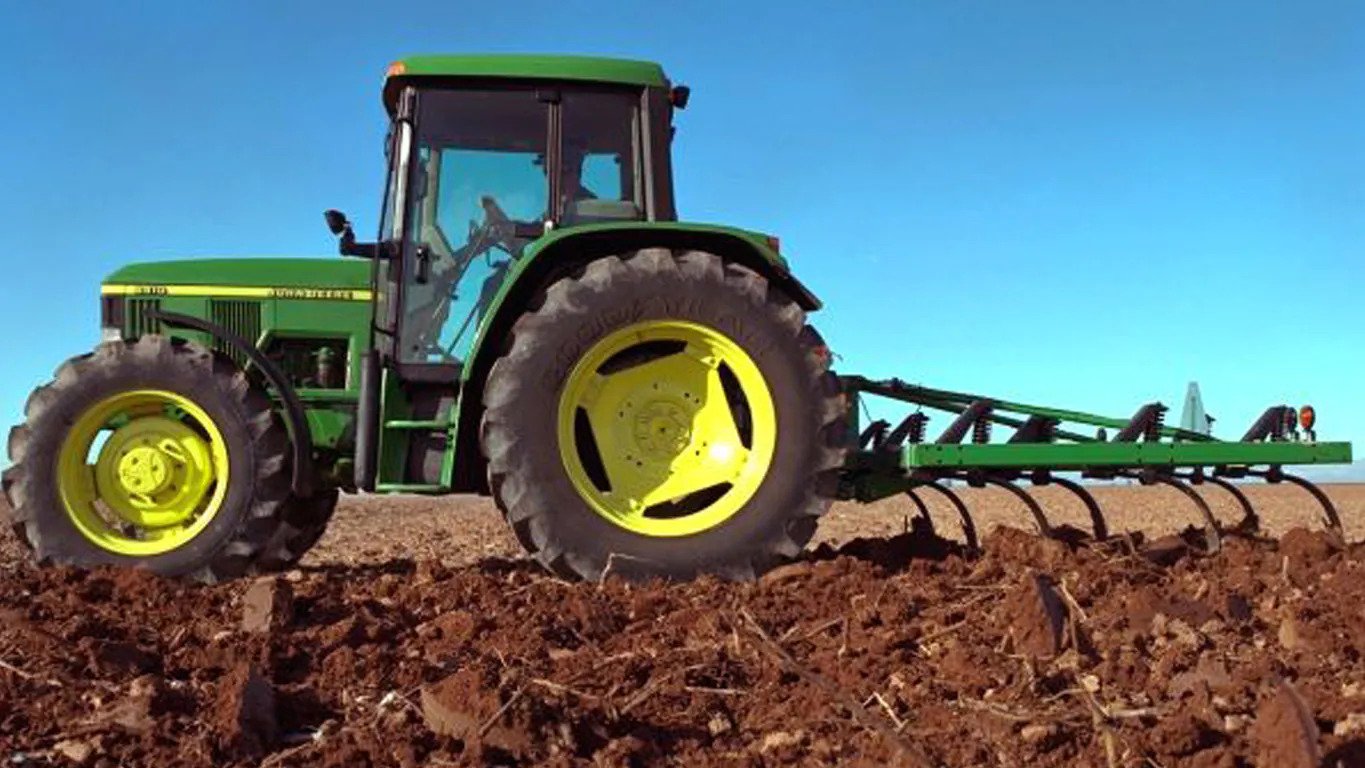

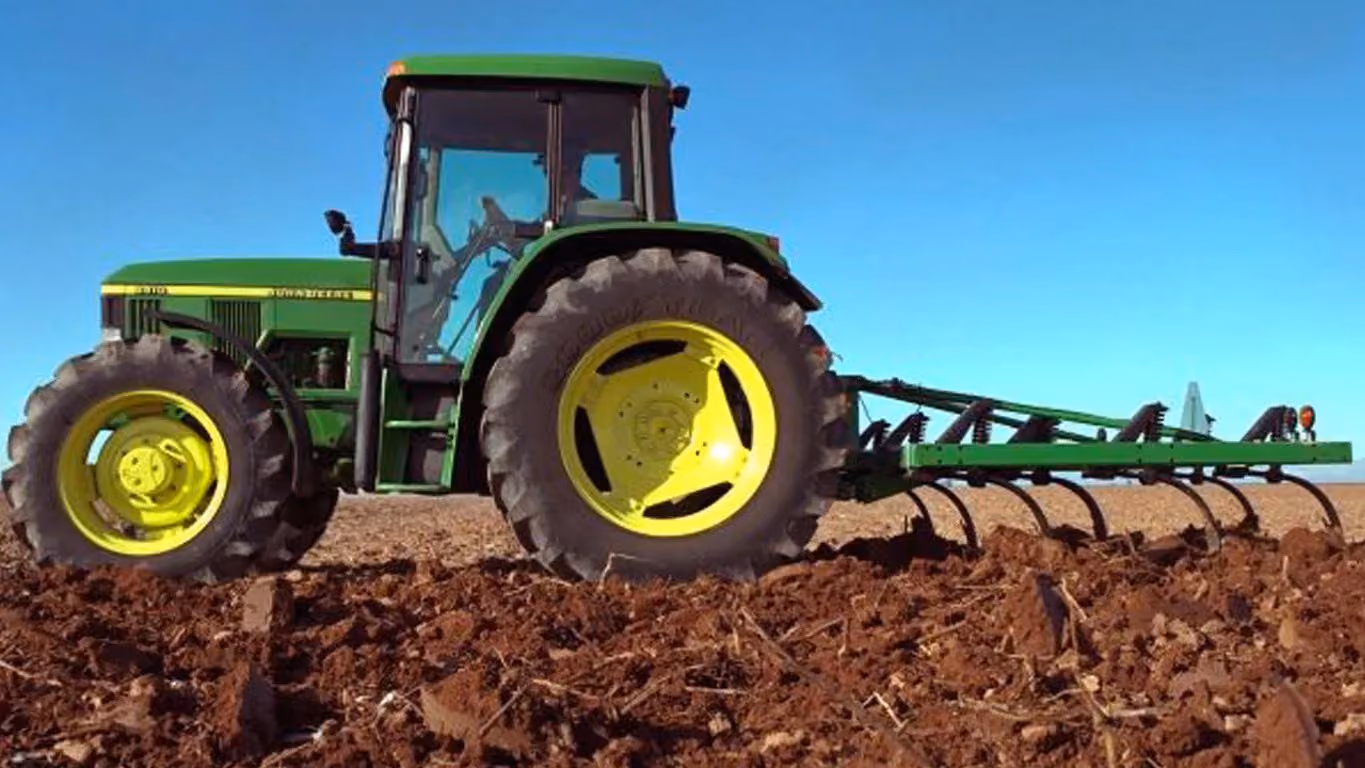

The 610 Chisel Plow features a large 102-mm x 102-mm (4-in. x 4-in.) tubular steel mainframe.

Welded construction adds the inner strength that withstands twisting and pulling through demanding field conditions.

‍

The rigid standard:

• Is in base equipment on three-section models
• Is 32 mm x 51 mm x 711 mm (1.25 in. x 2 in. x 28 in.)
• Design is suited for fields having few obstructions
• Will till to 203 mm (8 in.) deep

Good clearance to handle heavy trash

• 711-mm (28-in.) underframe
• 305-mm (12-in.) spacing

The TruPosition standard:

• Is optional on all models
• Cast pivot assembly holds shank firm while working in the soil
• Is 32 mm x 51 mm x 711 mm (1.25 in. x 2 in. x 28 in.)
• Shank is replaceable without disassembly of the standard assembly
• Slotted lower hole to aid in removing ground-engaging tools

Trip action is suited for fields having rocks or other obstructions

• 550-lb trip 711-mm (28-in.) standard will till to 203 mm (8 in.) deep
• 711-mm (28-in.) underframe
• 305-mm (12-in.) spacing
• Trip height of 254 mm (10 in.) for good clearance

The Tru-Depth standard:

• Is optional on drawn rigid and select drawn flexible models up to 838 mm (33 ft)
• Is 51 mm x 32 mm x 813 mm (2 in. x 1.25 in. x 32 in.); edge is bent for extra strength

Designed to work in rocky ground and heavy draft conditions

• Will till to 305 mm (12 in.) deep
• Trip height of 279 mm (11 in.)
• 568-kg (1250-lb) trip force

Excellent clearance to handle heavy trash

• 813-mm (32-in.) underframe
• 305-mm (12-in.) spacing

‍

An implement warning light harness with a turn-signal module for two amber and two red lights are included as standard equipment for safe transport on roads.

The implement warning light harness requires one of the following:

• Category 2, 3-point hitch with or without Quik-Coupler

• Category 3 and 3N, 3-point hitch with or without Quik-Coupler

HORSEPOWER REQUIREMENTS

The rigid and TruPosition™ standards require engine horsepower of 6 hp per ft to 10 hp per ft.

The Tru-Depth™ standard requires engine horsepower of 6 hp per ft to 14 hp per ft.

The 610 Chisel Plow is available in a variety of sizes to help match tractor horsepower and work designs.

‍
