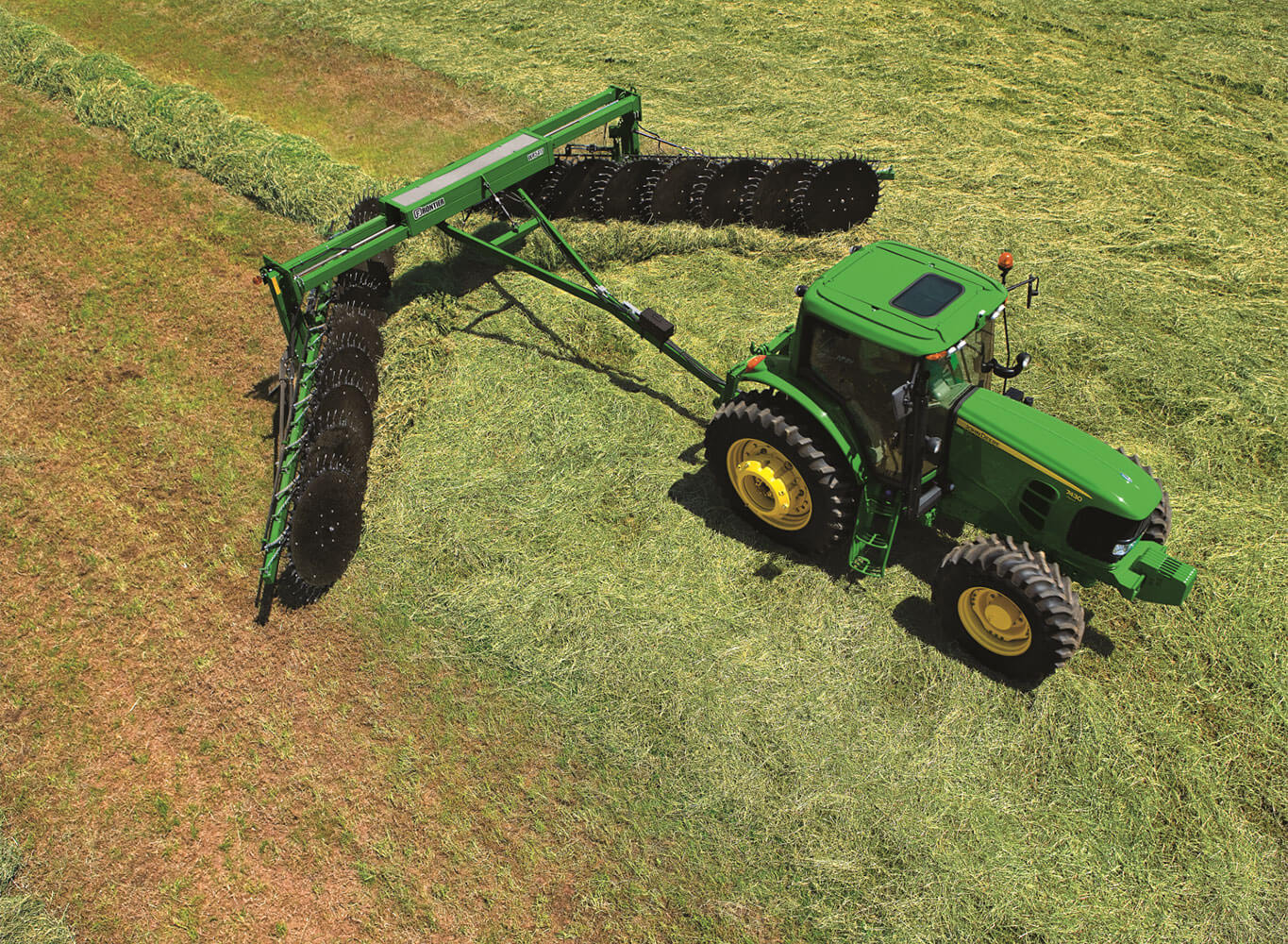

Rake beams quickly adjust to set the rake wheels from 0 to 8 degrees to allow for more or less aggressive raking. The 0 degree setting is for dry crops and up to 8 degrees is used for short, wet, or matted-down crops.

Durable wind boards keep hay from getting caught in the wheels and are standard on the WR54 Series Heavy-Duty, High-Capacity Wheel Rakes.

‍

The 152.4-cm (60-in.) rake wheels on the WR54 High-Capacity Wheel Rake float freely, thanks to individual dampening springs which are standard equipment. If more precise adjustment for the dampening and float of rake wheels is required, the optional bi-directional spring can be ordered.

The rake wheels may be lifted independently left or right, or both at the same time.

‍

The master control system on the WR54 Series High-Capacity Wheel Rake allows the operator to control various rake-wheel functions with the flip of a switch.

The maximum raking width is 8.8 m (29 ft). The rake wheel beams may be angled independently. This allows the operator to do one sided raking if desired.
